£7,120.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Range (inch) | Price | ||
|---|---|---|---|---|---|
| 518-361-13 | 0 - 600 | 0 - 24 |
|
Prices in the above table do not include calibration.

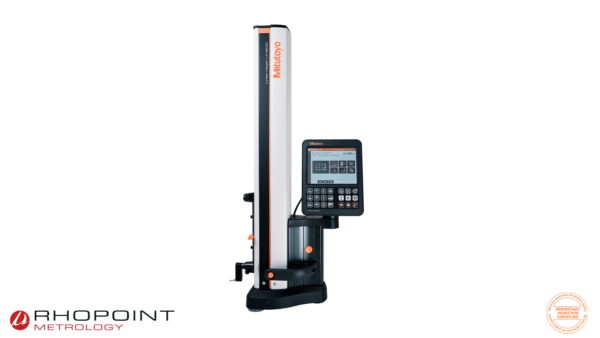

The Linear Heigth LH-600F/FG is a high-end 2D height-measuring instrument exhibiting the perfect combination of intuitive operation, multifunctionality and extraordinary accuracy, with Grip but without Power Cord.

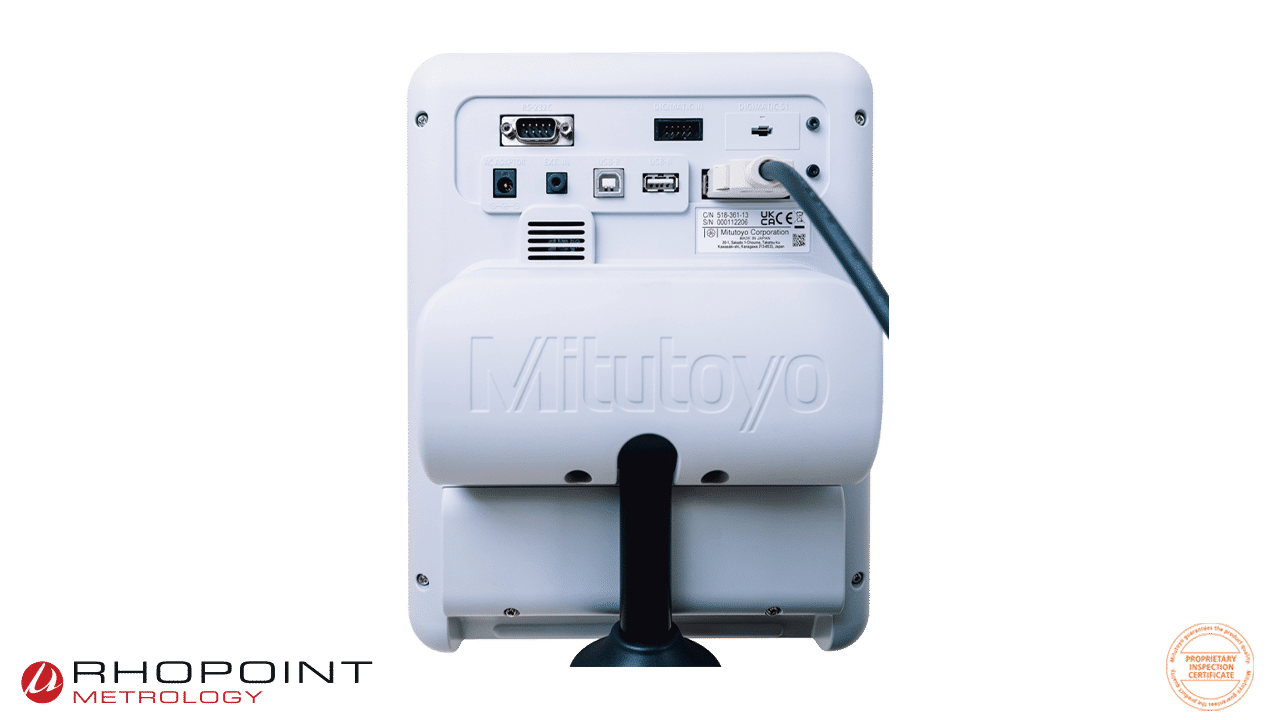

Measurement operations can be performed by using the hybrid controller box with a touch screen and integrated sheet keyboard
It is capable of measuring with a digital step of 0.1 µm
Excellent accuracy of (1.1 + 0.6L/600) µm
Bidirectional Digimatic data output (Digimatic S1)
Measurement results can be printed from a receipt printer or Digimatic Printer (DP-1VA) and sent to a PC via wireless communication, USB cable or USB-Stick
Pneumatic drive mechanism
Automatic running of pre-learned part programs
Excellent visualization of GO/±NG tolerance comparisons
Independent operation with rechargeable battery
LH-Communication Tool Software available online free of charge
| Weight | 26600 g |
|---|---|
| Unit | |
| Range (mm) | |
| Range (inch) | |
| Family | |
| Digital step | 0.0001/ 0.001/ 0.01/ 0.1 mm (selectable). 0.000001/ 0.00001/ 0.0001/ 0.001" (selectable) |
| Accuracy (mm) | |
| Calibration Code | |
| Calibration Type | |
| Perpendicularity | 5 µm (after compensation) |
| Straightness | 4 µm (mechanical) |
| Repeatability | (2σ) Plane : 0.4 µm (2σ) Bore : 0.9 µm |
| Air floating | Full-floating (for moving), semi floating (for scanning measurement) |
| Remarks | With power grip |
| Mass | |
| Scale | Photoelectric INC encoder, STVC-20Z (8.1×10-6/°C) |
| Display | 8.4" SVGA touch screen (800×600 dot, LED, with back lightning) |
| Drive method | Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 stpes)/ manual |
| Power supply | AC adapter 100-240V, 50/60Hz / battery (Ni-MH) |
| Battery operation time | Approx. 4 hours |
| Slider stroke | 600 mm |
| Sliding method | Rolling bearing |
| Digital/Analog |
