From £3,340.00
Calibration options available
| SKU | Unit | Range (mm) | Range (inch) | Price | ||
|---|---|---|---|---|---|---|
| 518-247 | Inch/Metric | 0 - 600 | 0 - 24 | £3,790.00 |
| |
| 518-246 | Metric | 0 - 600 | N/A | £3,790.00 |
| |
| 518-245 | Inch/Metric | 0 - 350 | 0 - 14 | £3,340.00 |
| |
| 518-244 | Metric | 0 - 350 | N/A | £3,340.00 |
|
Prices in the above table do not include calibration.

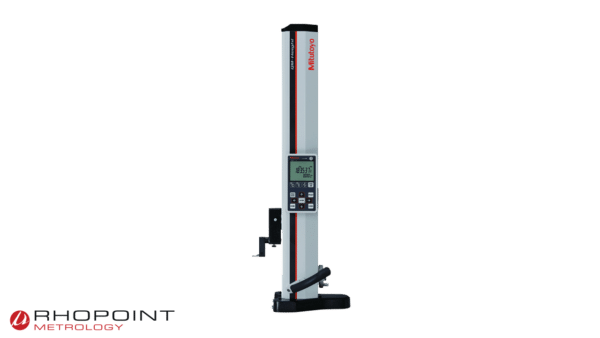

This is a high precision ABSOLUTE Digital Height Gauge that offers you the following benefits: It has a high accuracy, high resolution ABSOLUTE linear encoder for position detection. Types with and without pneumatic drive mechanism Automatic running of prelearnt part programs You can easily implement frequently used measurements, such as inside/outside diameter and pitch calculations, by icon-based commands that also support easy one-key operation. Extraordinary battery life GO/ยฑNG judgement is performed by setting the upper and lower tolerances.
| Weight | 3000 g |
|---|---|
| Unit | |
| Range (mm) | |
| Range (inch) | |
| Family | |
| Digital step | 0.00005/0.0001/0.0002" or 0.001/0.005 mm, 0.001 mm/0.005 mm |
| Accuracy (mm) | |
| Calibration Code | |
| Calibration Type | |
| Perpendicularity | 7 ยตm, 12 ยตm |
| Repeatability | (2ฯ) โค 1.8 ยตm |
| Air floating | yes |
| Mass | |
| Display | |
| Measuring function | 1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory |
| Drive method | Manual |
| Power supply | Alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.), AC-Adapter (optional) |
| Delivered | Including 4 batteries, setting block, ball offset probe |
| Battery life | Approx. 1200 h (without air floating) Approx. 90 h (with air floating) |
| Digital/Analog |
