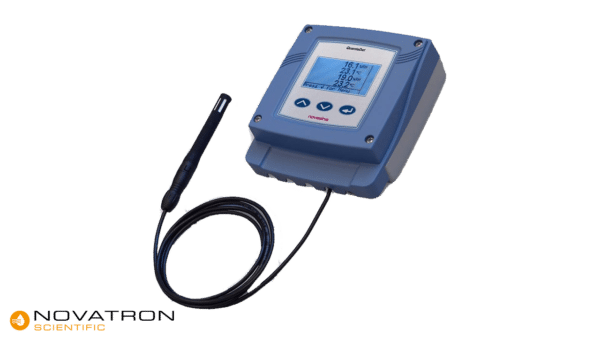

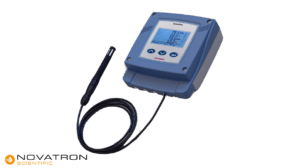

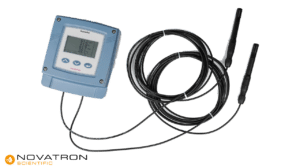

The QuantaDat modular temperature and humidity probe offers 4 sensor channel inputs. The intelligent sensors are recognised automatically and the measuring channels can be assigned and set up within the configuration menu. The integral processor allows the display and output of calculated climatic parameters. 4 scalable and adjustable analogue outputs, as well as an RS-485 digital interface, are built-in as standard. The QuantaDat transmitter is also available in a version with two additional integrated relay switches.
The digital nSens-HT humidity/temperature and nSens-T temperature sensors work over the whole measurement range with high accuracy and linear response characteristics. The calibration data is stored directly onto the humidity sensor. The verification/calibration is performed by PC using the nSoft-CAL software. These plug-in humidity sensor probes are quickly replaced on-site and the newly calibrated system may be put back into use again quickly, maintaining the highest accuracy.
Safety: IEC 61010-2-051:2003
EMC: IEC 61000-6-2:2005, EN 61000-6-2:2005
EMC: IEC 61000-6-3:2006, EN 61000-6-3:2007
Calibration options available
| Power supply | 24V ±15% AC or DC (galvanic isolated) |
|---|---|
| Power Consumption | |
| Display | Graphical display with LED backlight, resolution 128 x 64 Px |
| Display Resolution | |
| Digital outputs | |
| Housing Material | |
| Protection | |
| Soldering Material | |
| Working Temperature | 0 to +50°C |
| Storage temperature | -10 to +60°C (non-condensing) |
