Mitutoyo Tubular Inside Micrometer with Extension (inch)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (inch)Graduation (inch)Price
139-0024 - 50.0004"£170.00

Add to Basket

139-1784 - 200.001"£573.00

Add to Basket

139-1794 - 360.001"£638.00

Add to Basket

139-1804 - 520.001"£745.00

Add to Basket

139-1814 - 680.001"£863.00

Add to Basket

139-1824 - 840.001"£942.00

Add to Basket

140-16140 - 800.001"£2,450.00

Add to Basket

140-16240 - 1200.001"£2,570.00

Add to Basket

140-16340 - 1600.001"£3,370.00

Add to Basket

140-16440 - 2000.001"£4,190.00

Add to Basket

Prices in the above table do not include calibration.

Description

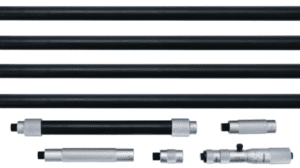

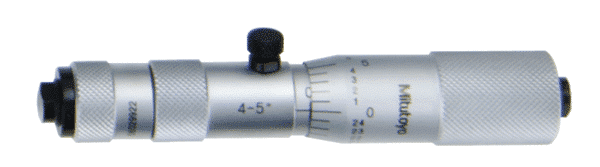

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.

Specification

Weight 1690 g
Unit

Range (inch)

, , , , , , , , ,

Graduation (inch)

,

Family

,

Calibration Type

,

Extension rods

4 (1, 2, 4, 8"), 5 (1, 2, 4, 8, 16"), 5 (2, 4, (2 pcs.), 8, 20"), 6 (1, 2, 4, 8, 16" (2 pcs.)), 6 (2, 4 (2 pcs.), 8, 20, 40"), 7 (1, 2, 4, 8, 16" (3 pcs.)), 7 (2, 4 (2 pcs.), 8, 20, 40" (2 pcs.)), 8 (1, 2, 4, 8, 16" (4 pcs.)), 8 (2, 4 (2 pcs.), 8, 20, 40" (3 pcs.))

Measuring span (mm)

Measuring span (inch)

, ,

Measuring spindle

Spindle pitch 0,025" mm, Spindle pitch 0,635 mm, Spindle pitch 0.02" mm, Spindle pitch 0.025" mm

Measuring face

Carbide

Measuring depth (inch)

Measuring method

Accuracy Specification

±[0,00015+0,00005n+0,00005(L/2)]" n = Number of rod, L = Maximum measuring length (inch), ±[0,00015+0,00005n+0,00005(L/2)]" n = Number of rod, L = Maximum measuring length (mm)

Micrometer Head stroke (inch)

0

Delivered

Including box, key, micrometer head

Digital/Analog
