£573.00 – £4,190.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Graduation (mm) | Price | ||
|---|---|---|---|---|---|
| 139-173 | 100 - 500 | 0.01 mm | £573.00 |
| |
| 139-174 | 100 - 900 | 0.01 mm | £638.00 |
| |
| 139-175 | 100 - 1300 | 0.01 mm | £745.00 |
| |
| 139-176 | 100 - 1700 | 0.01 mm | £863.00 |
| |
| 139-177 | 100 - 2100 | 0.01 mm | £942.00 |
| |
| 140-157 | 1000 - 2000 | 0.01 mm | £2,450.00 |
| |
| 140-158 | 1000 - 3000 | 0.01 mm | £2,570.00 |
| |
| 140-159 | 1000 - 4000 | 0.01 mm | £3,370.00 |
| |
| 140-160 | 1000 - 5000 | 0.01 mm | £4,190.00 |
|
Prices in the above table do not include calibration.

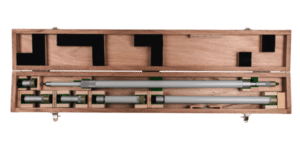

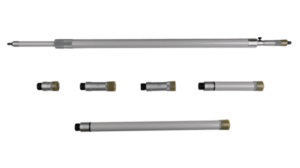

This is an extension pipe type inside micrometer that offers you the following benefits: Interchangeable extensions in a hollow pipe design.
| Weight | 1690 g |
|---|---|
| Unit | |
| Range (mm) | 100 – 500, 100 – 900, 100 – 1300, 100 – 1700, 100 – 2100, 1000 – 2000, 1000 – 3000, 1000 – 4000, 1000 – 5000 |
| Graduation (mm) | |
| Family | |
| Calibration Type | |
| Extension rods | 4 (25, 50, 100, 200 mm), 5 (25, 50, 100, 200, 400 mm), 5 (50, 100 (2 pcs.) 200, 500 mm), 6 (25, 50, 100, 200, 400 mm (2 pcs.)), 6 (50, 100 (2 pcs.), 200, 500, 1,000 mm), 7 (25, 50, 100, 200, 400 mm (3 pcs.)), 7 (50, 100 (2 pcs.), 200, 500, 1,000 mm (2 pcs.)), 8 (25, 50, 100, 200, 400 mm (4 pcs.)), 8 (50, 100 (2 pcs.) 200, 500, 1,000 mm (3 pcs.)) |
| Extension | ø17 mm |
| Measuring span (mm) | |
| Measuring span (inch) | |
| Measuring spindle | Spindle pitch 0,5 mm, Spindle pitch 0.5 mm |
| Measuring face | Carbide |
| Measuring depth (inch) | |
| Measuring method | |
| Accuracy Specification | ±(3+n+L/50) µm n = Number of rod, L = Maximum measuring length (mm), ±(7+n+L/50) µm n = Number of rod, L = Maximum measuring length (mm) |
| Micrometer Head stroke (inch) | 0 |
| Digital/Analog |
