From £336.00
Calibration options available

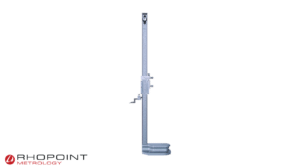

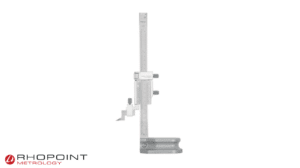

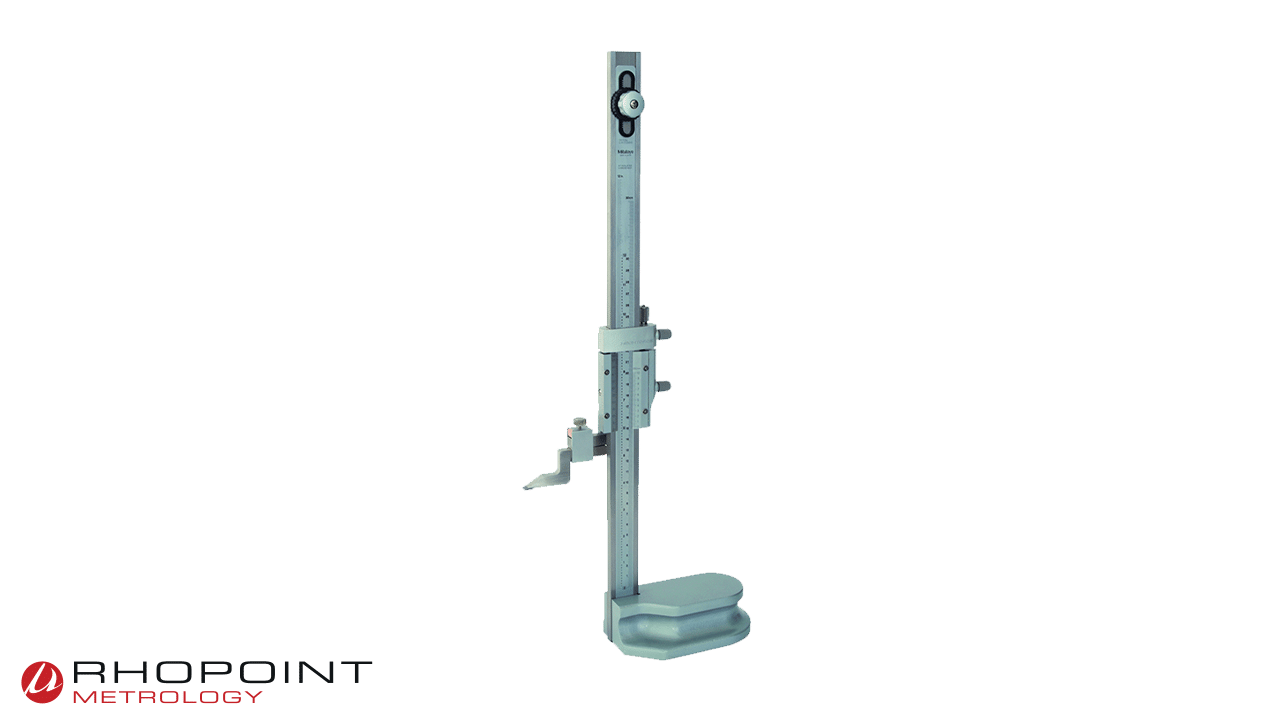

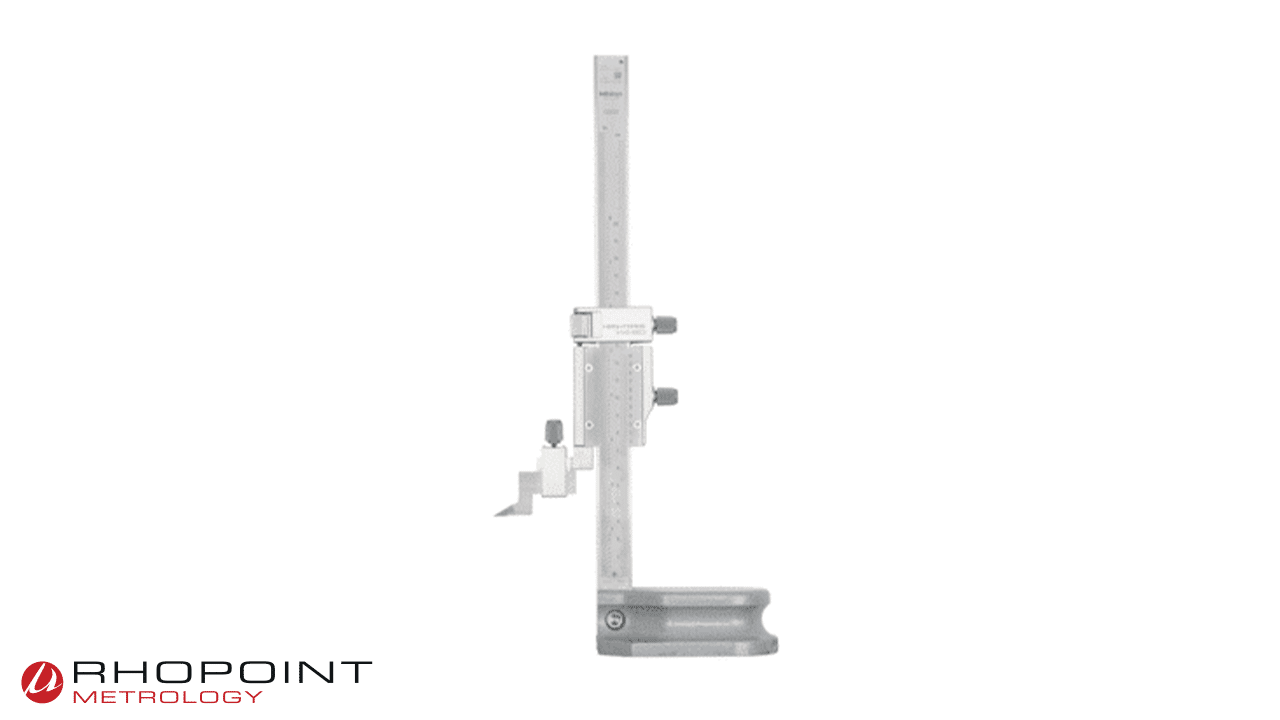

| SKU | Unit | Range (mm) | Range (inch) | Price | ||
|---|---|---|---|---|---|---|
| 506-208 | Inch/Metric | 0 - 200 | 0 - 8 | £336.00 |
| |
| 514-103 | Inch/Metric | 0 - 300 | 0 - 12 | £422.00 |
| |
| 514-105 | Inch/Metric | 0 - 450 | 0 - 18 | £808.00 |
| |
| 514-107 | Inch/Metric | 0 - 600 | 0 - 24 | £1,060.00 |
| |
| 514-109 | Inch/Metric | 0 - 1000 | 0 - 40 | £2,360.00 |
| |
| 514-170 | Metric | 0 - 1500 | N/A | £6,120.00 |
|
Prices in the above table do not include calibration.

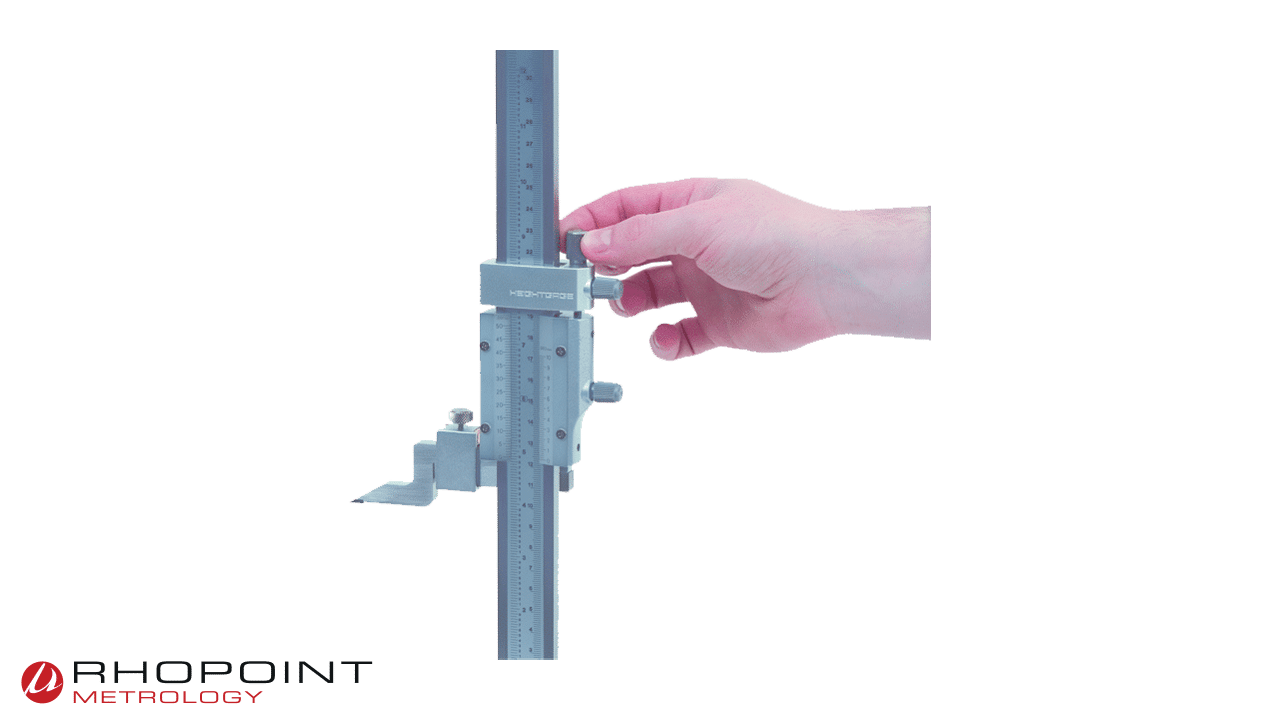

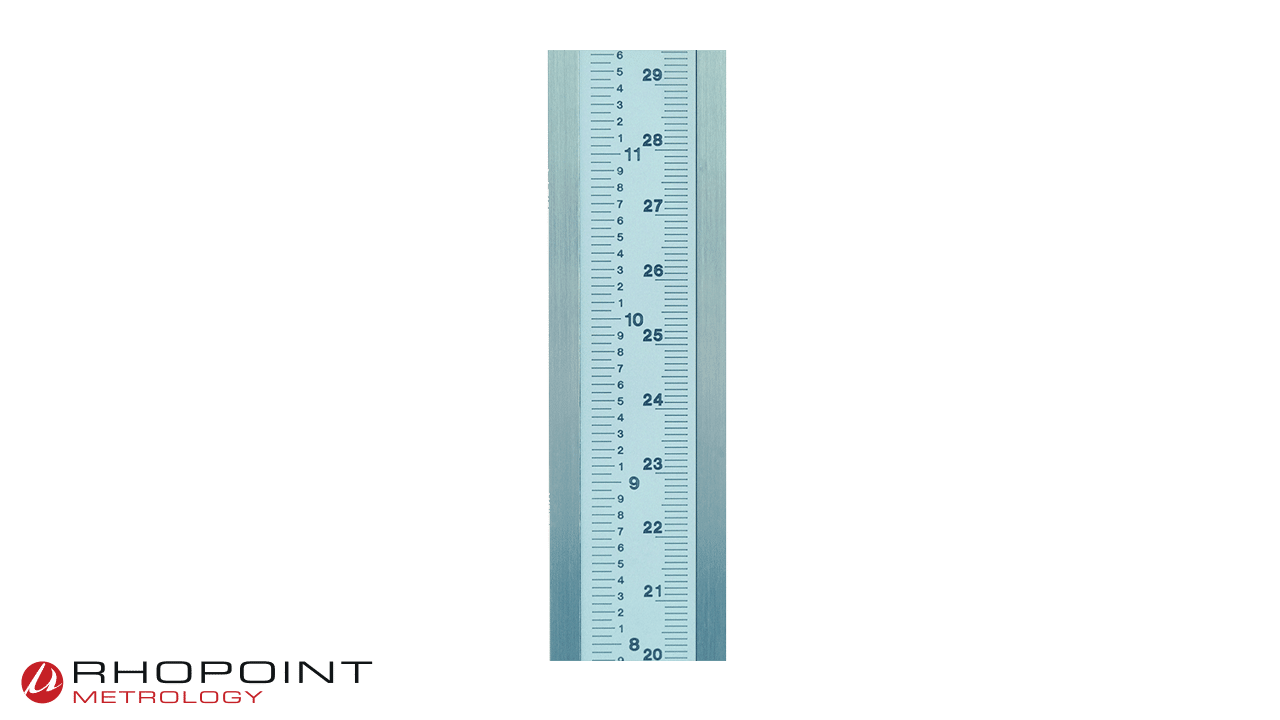

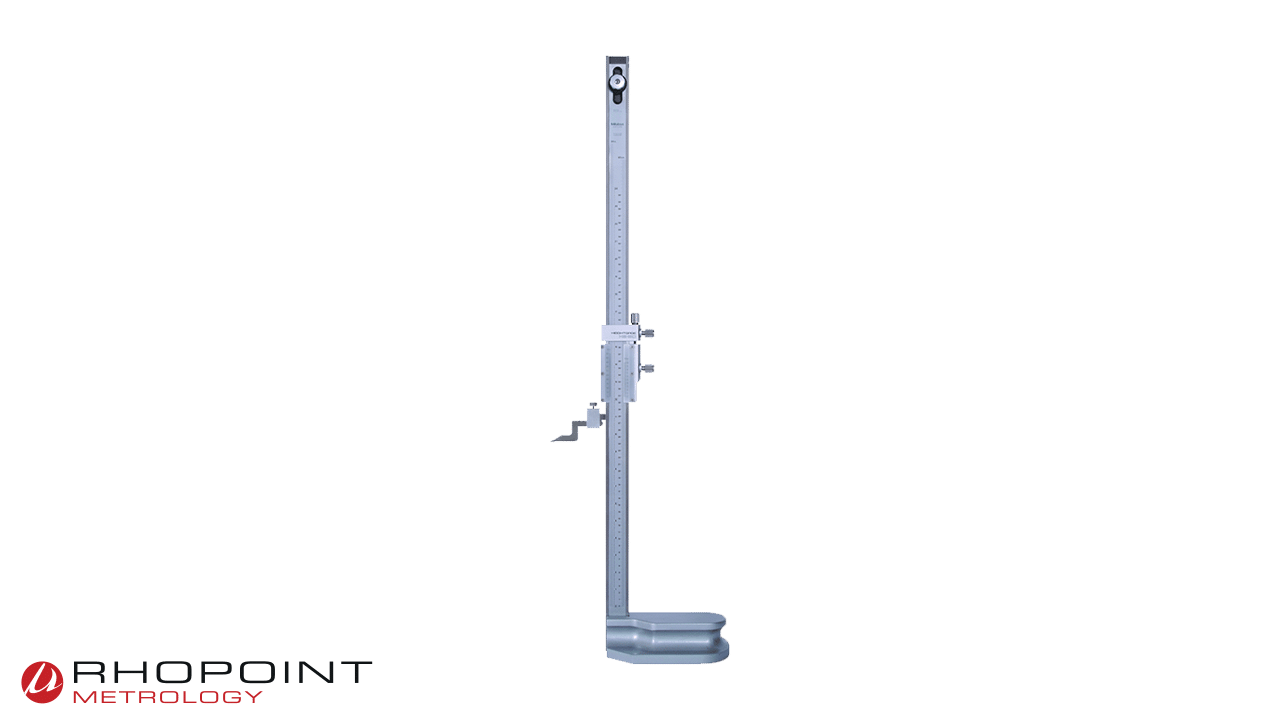

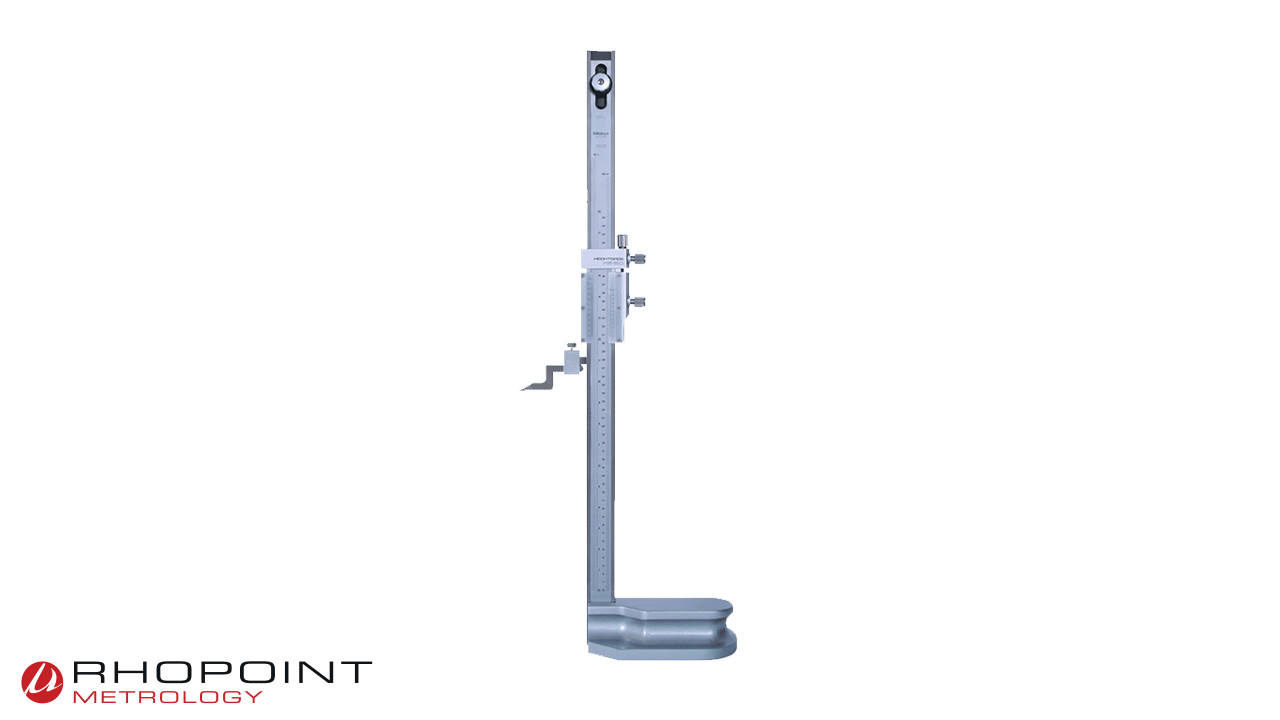

This vernier height gauge offers you the following benefits: You can take accurate and fast readings thanks to the satin chrome finished main and vernier scales. A carbide-tipped scriber is provided.
| Weight | 3400 g |
|---|---|
| Unit | |
| Range (mm) | |
| Range (inch) | |
| Family | |
| Calibration Code | |
| Calibration Type | |
| Graduation | |
| Max. Permissible Error E (mm) | ±0.03 mm, ±0.04 mm, ±0.05 mm, ±0.07 mm, ±0.18 mm |
| Max. Permissible Error E (in) | ±0.001", ±0.002", ±0.003" |
| Fine adjustment | 20 mm, 4 mm/0.16", 6 mm/0.24", 6 mm/0.27" |
| Mass | |
| Scale adjustment (mm) | 25 mm |
| Scale adjustment (inch) | 0.6", 1" |
| Delivered | Including scriber and scriber clamp, Including scriber, scriber clamp and cover |
| Digital/Analog | |
| Remarks | Delivered with magnifier |
