Mitutoyo Wide Rigid Rule

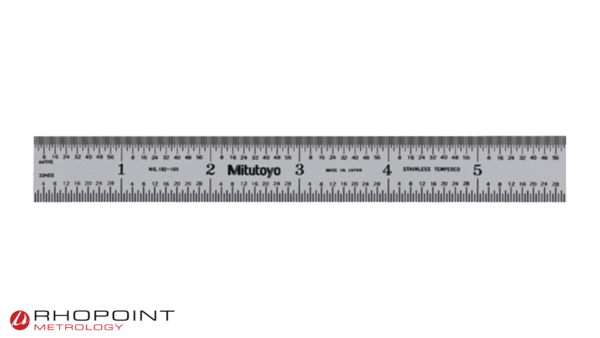

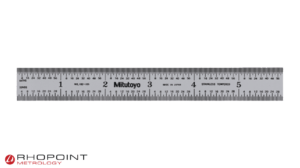

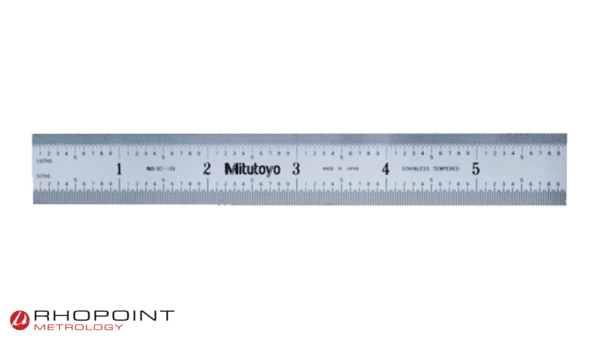

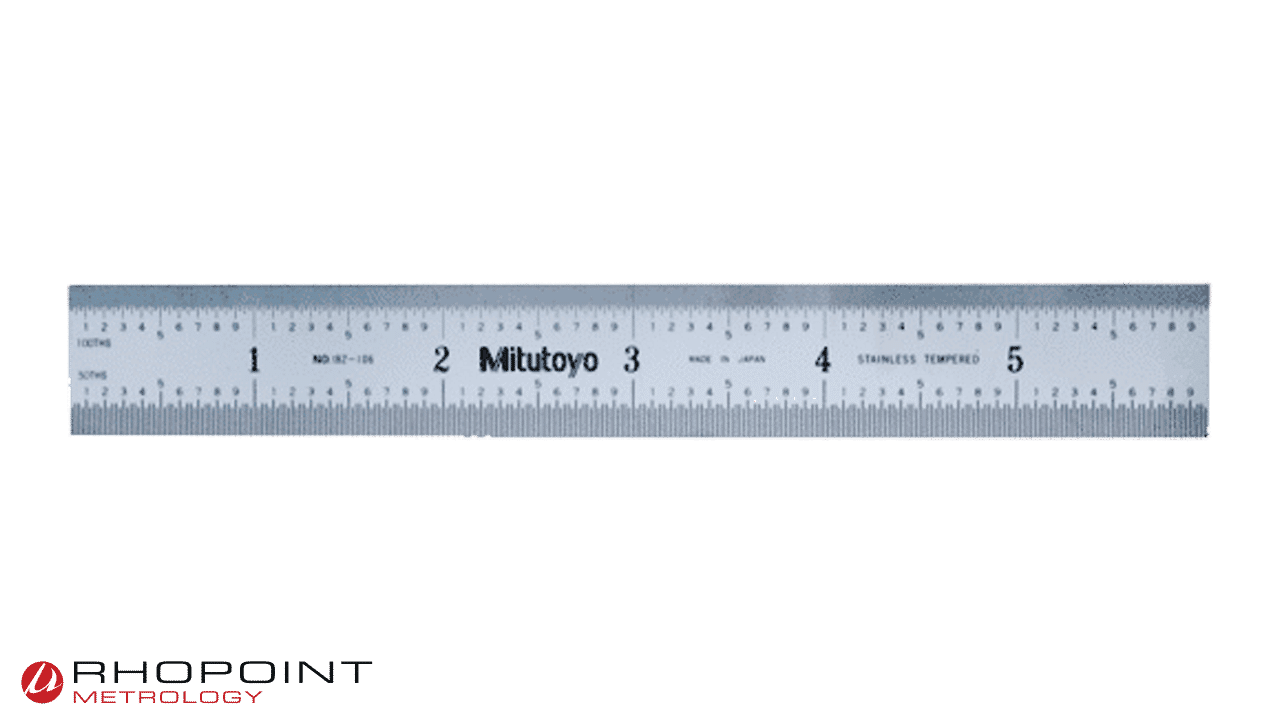

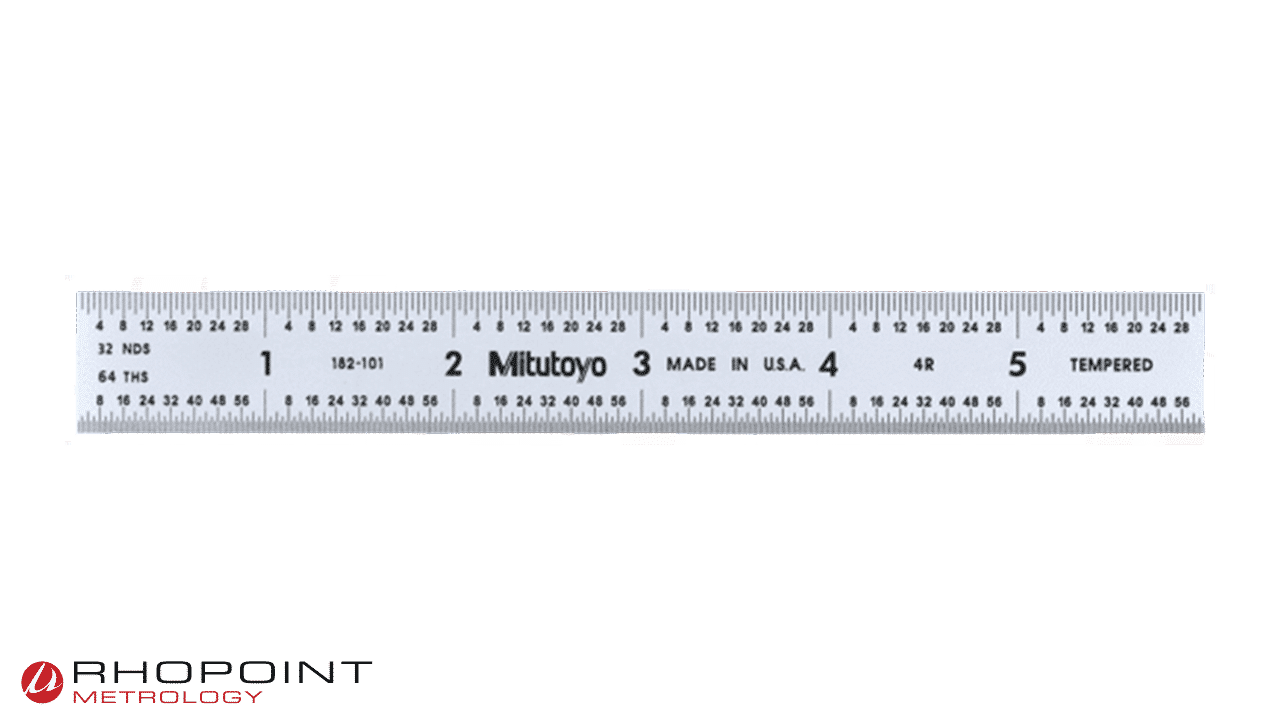

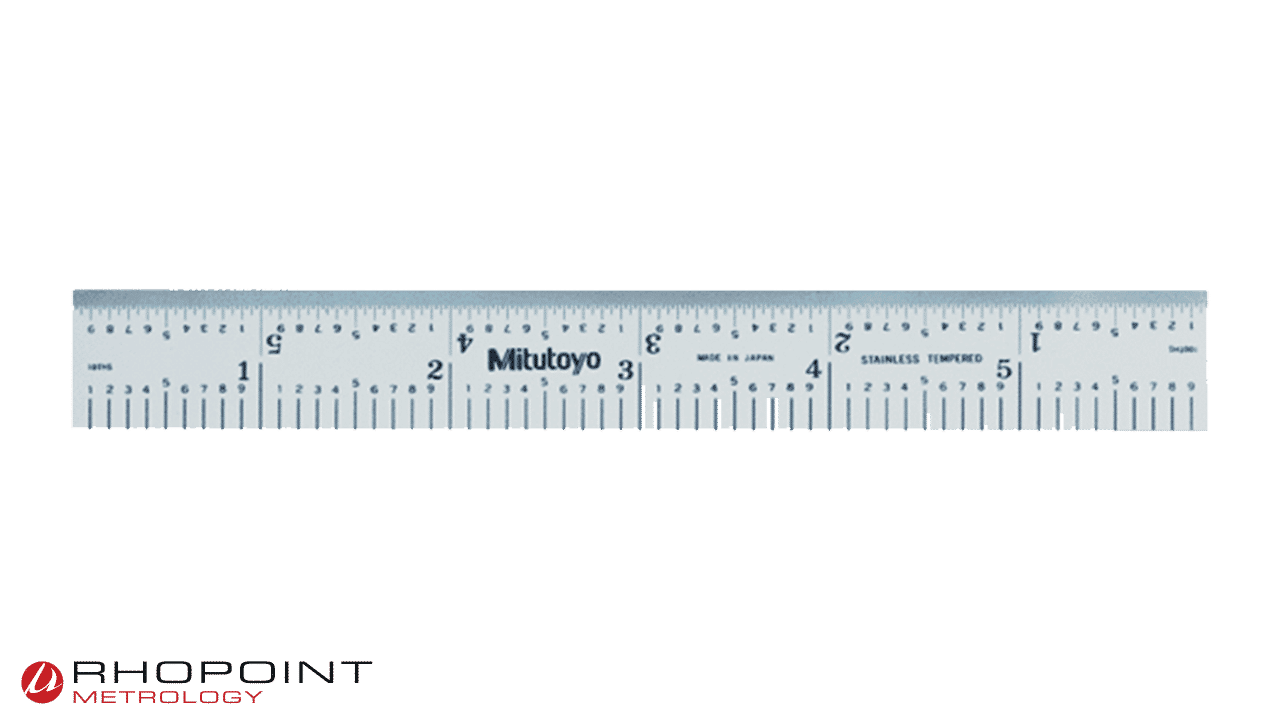

Mitutoyo Wide Rigid Steel Rule 150mm / 6inch

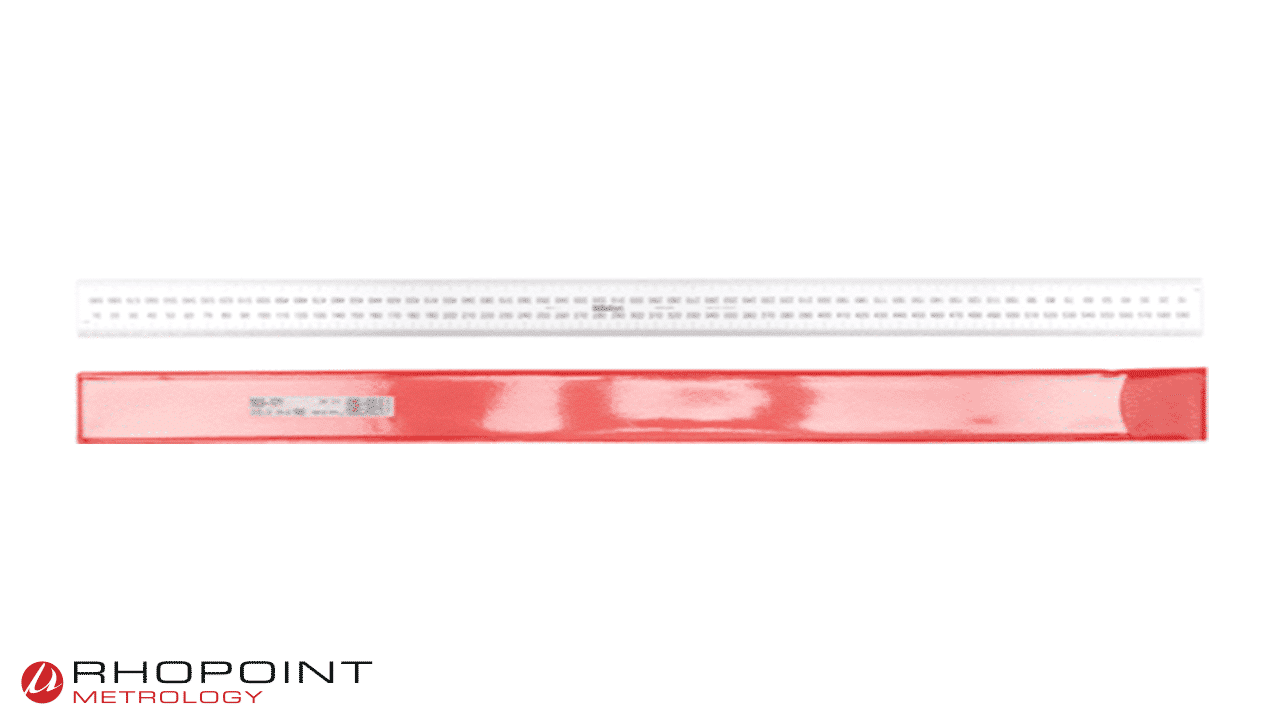

Mitutoyo Wide Rigid Steel Rule 600mm with Protection Case

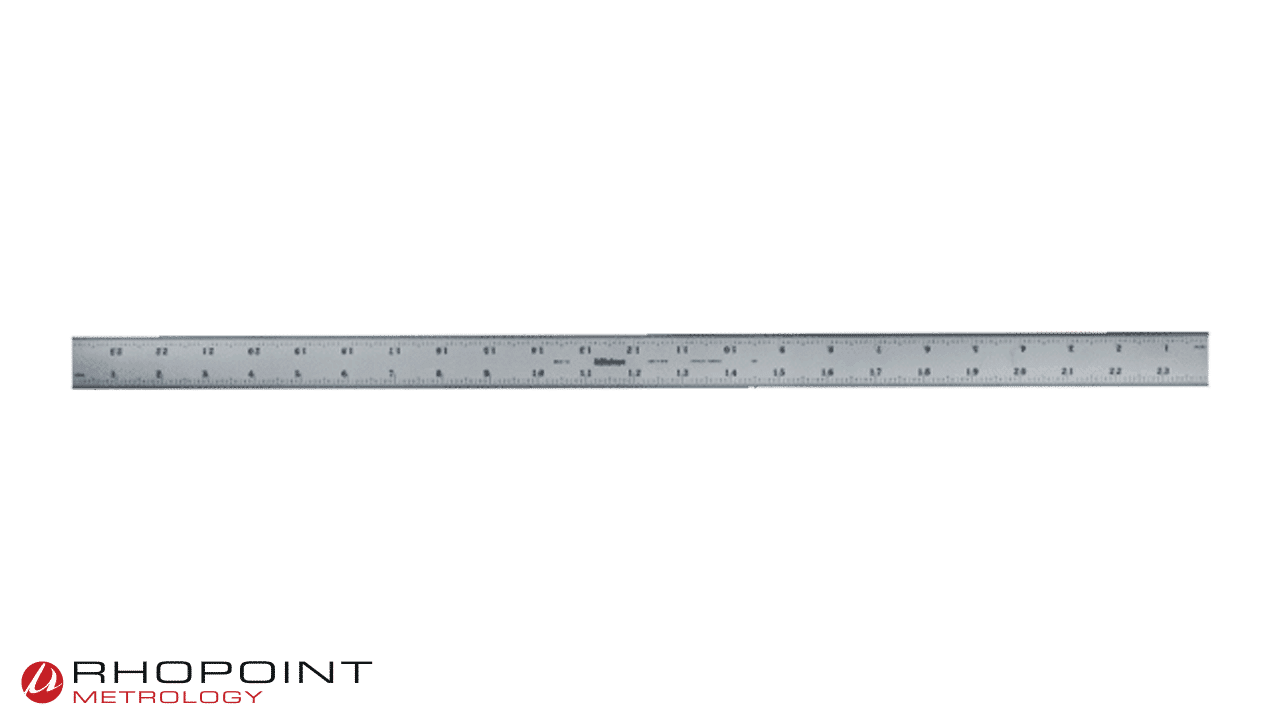

Mitutoyo Wide Rigid Steel Rule 600mm / 24 inch

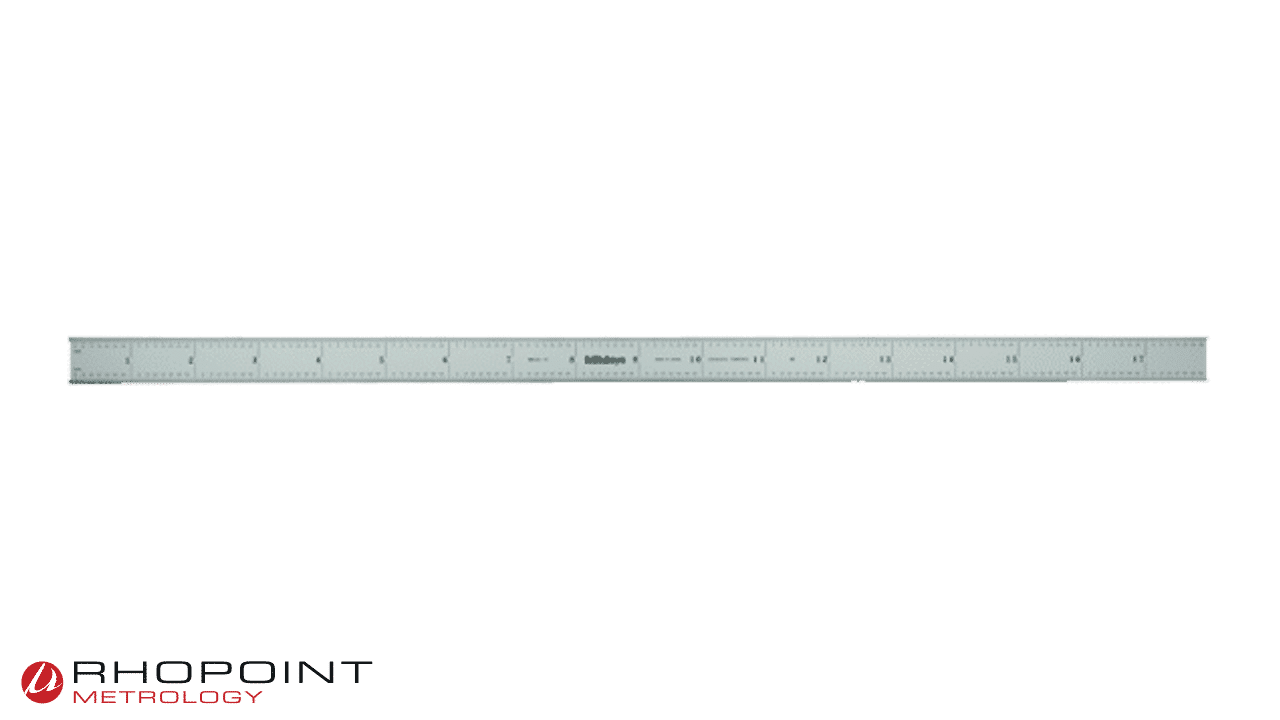

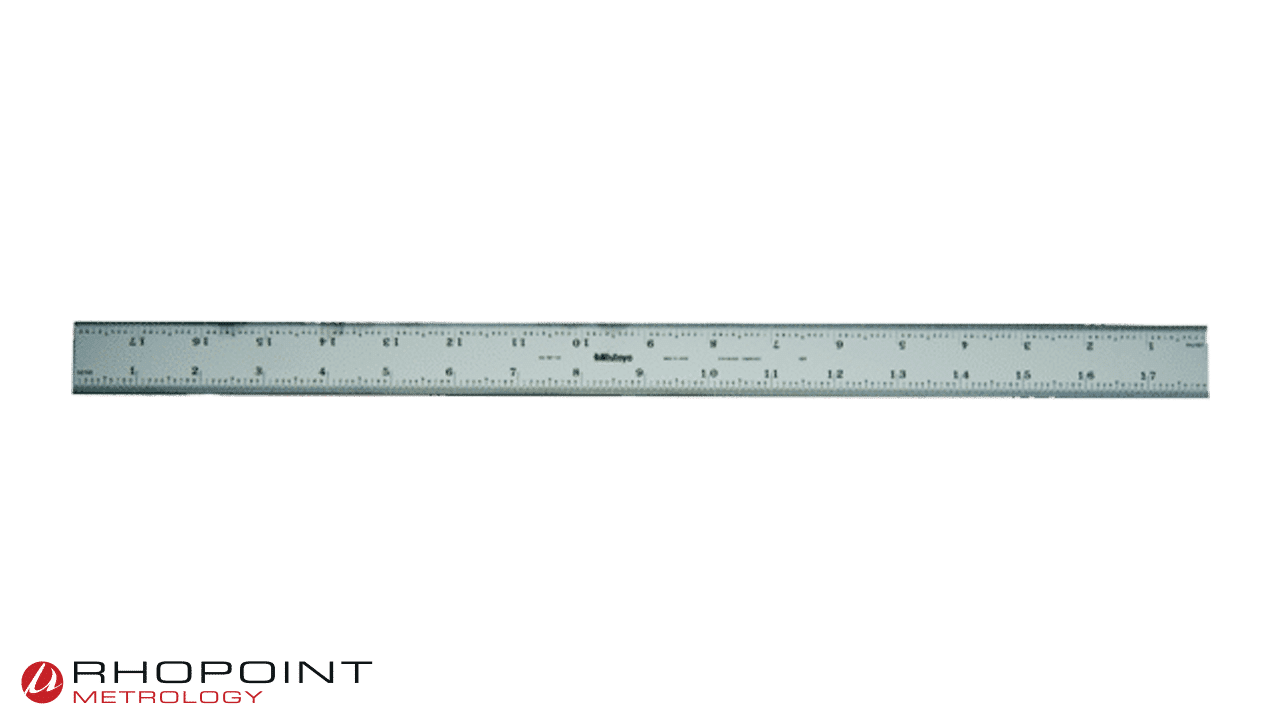

Mitutoyo Wide Rigid Steel Rule 450mm / 18inch

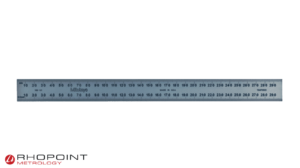

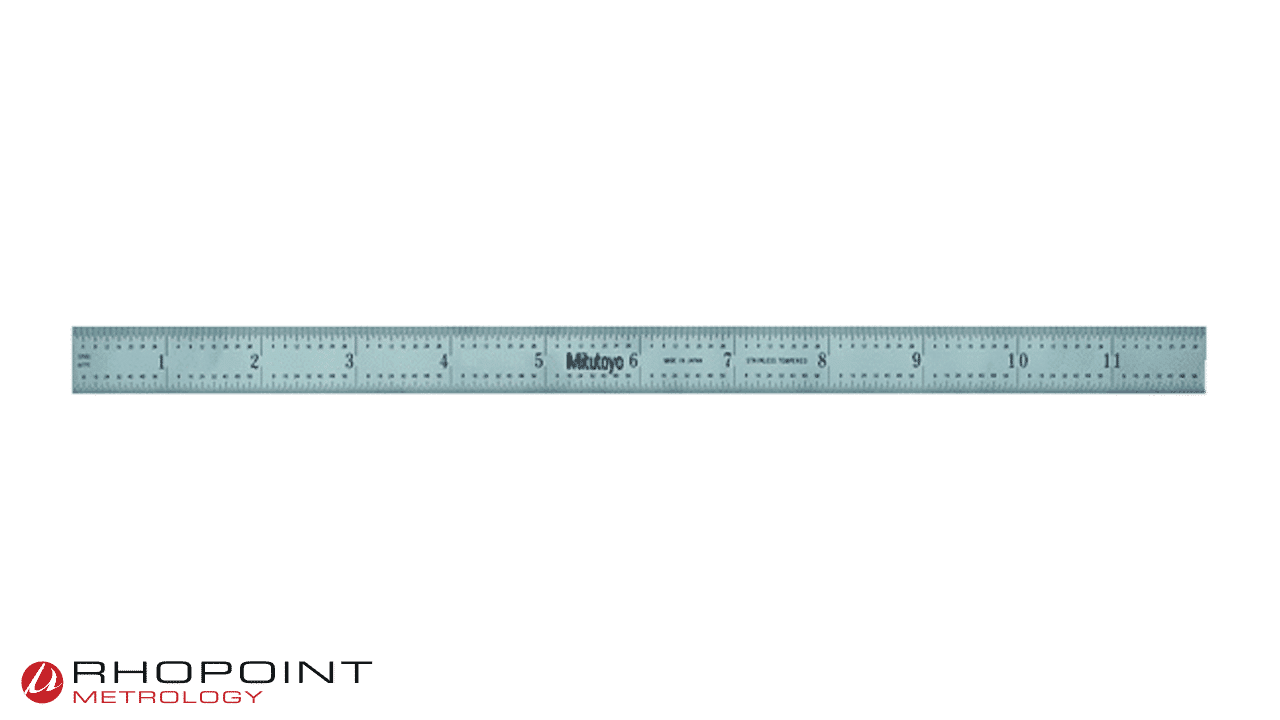

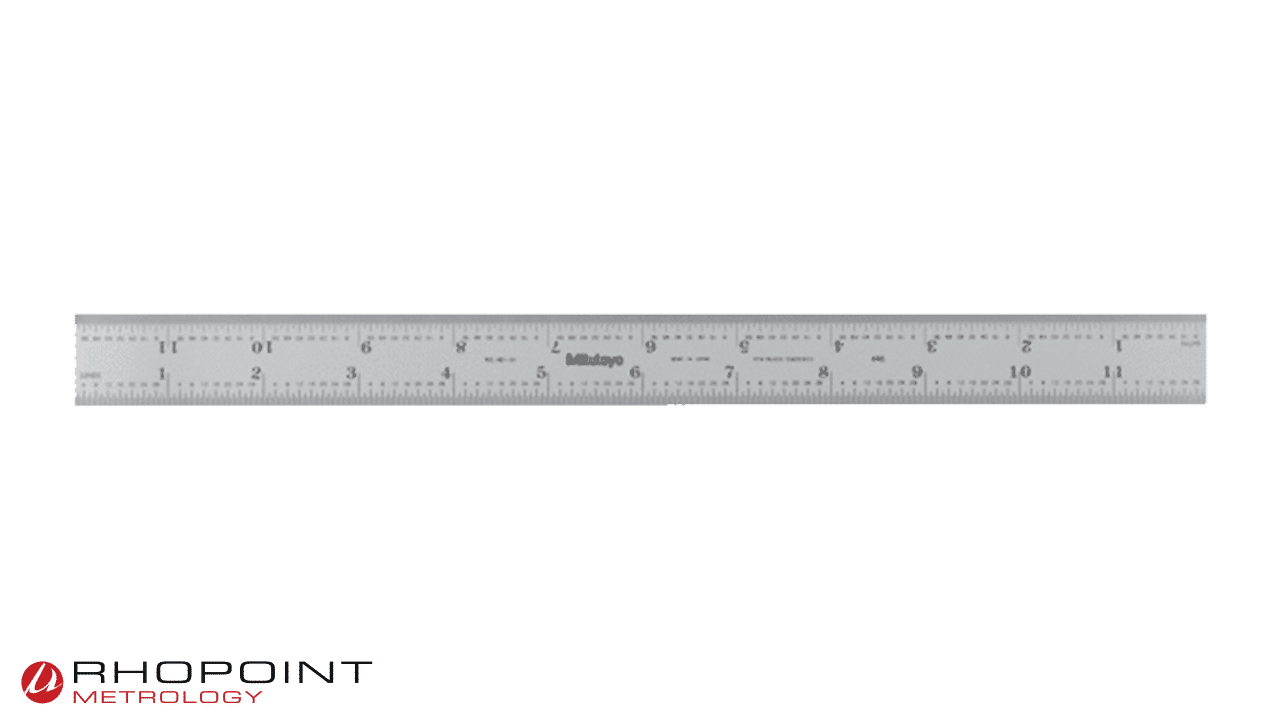

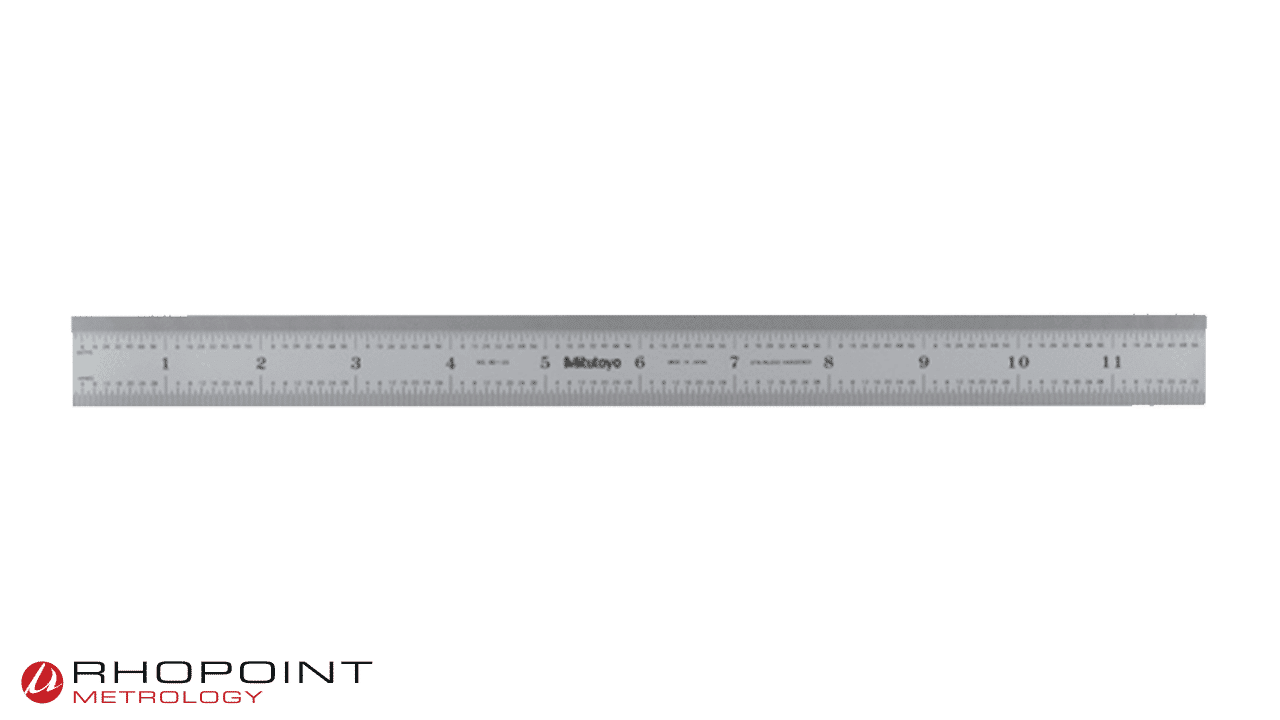

Mitutoyo Wide Rigid Steel Rule 300mm / 12 inch

Manufacturer: Mitutoyo

From £12.00

Calibration options available

Unit

Range (inch)

Range (mm)

Graduation

Clear

Add Steel Rule Calibration

UKAS Calibration for Steel Rules – 1 Scale (+50% Per Extra Scale) – 150 mm (6″) (RML-P700) * + £25.00
UKAS Calibration for Steel Rules – 1 Scale (+50% Per Extra Scale) – 300 mm (12″) (RML-P701) * + £34.00
UKAS Calibration for Steel Rules – 1 Scale (+50% Per Extra Scale) – 600 mm (24″) (RML-P702) * + £40.00
UKAS Calibration for Steel Rules – 1 Scale (+50% Per Extra Scale) – 1 metre (40″) (RML-P703) * + £50.00
UKAS Calibration for Steel Rules – 1 Scale (+50% Per Extra Scale) – 150 mm (6″) (RML-P700) * + £25.00

Product total

Calibration total

Grand total

View List

All prices are exclusive of UK VAT (where applicable)

Calibration Information: Steel Rules

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKU	Unit	Range (inch)	Range (mm)	Graduation	Price
182-111	Metric	N/A	0 - 150	1 mm / 0.5 mm (on both faces)	£12.00	Add to Basket

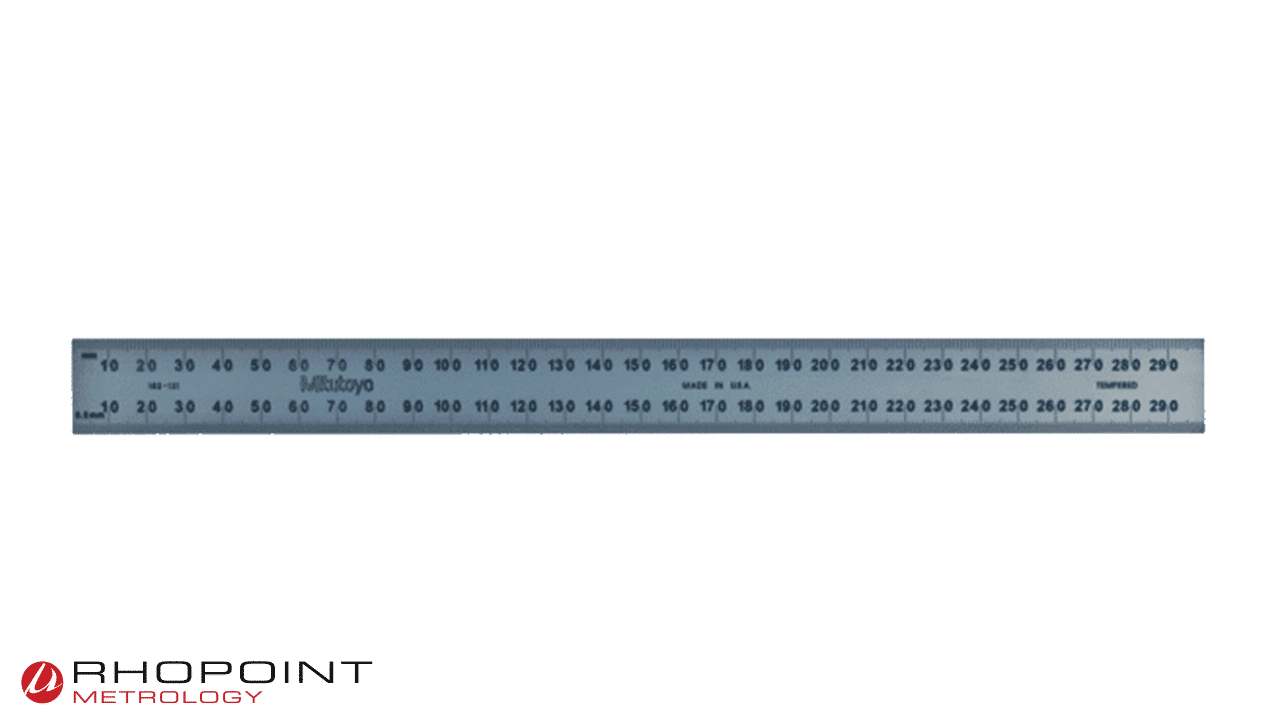

182-131	Metric	N/A	0 - 300	1 mm / 0.5 mm (on both faces)	£17.90	Add to Basket
182-151	Metric	N/A	0 - 450	1 mm / 0.5 mm (on both faces)	£44.10	Add to Basket
182-171	Metric	N/A	0 - 600	1 mm / 0.5 mm (on both faces)	£62.50	Add to Basket
182-101	Inch	0 - 6	N/A	1/8", 1/16", 1/32", 1/64"	£12.00	Add to Basket

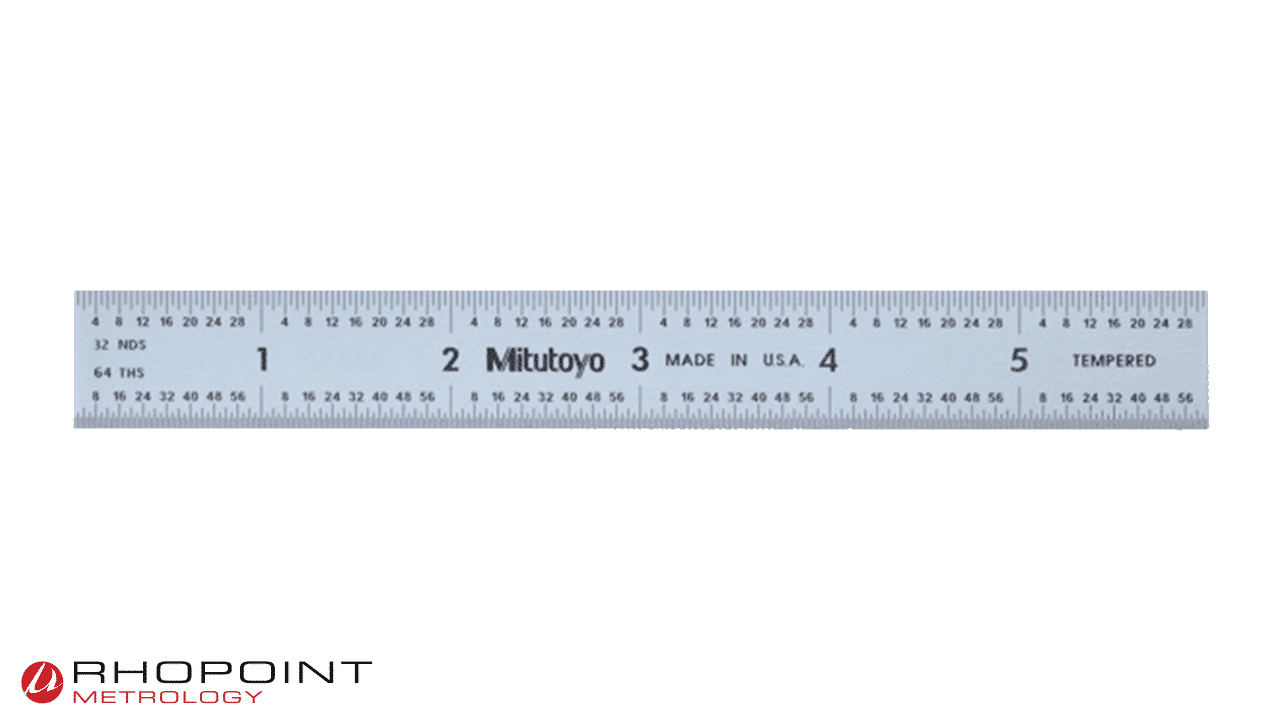

182-104	Inch	0 - 6	N/A	1/10", 1/50", 1/32", 1/64"	£12.00	Add to Basket
182-103	Inch	0 - 6	N/A	1/10", 1/100", 1/32", 1/64"	£15.30	Add to Basket

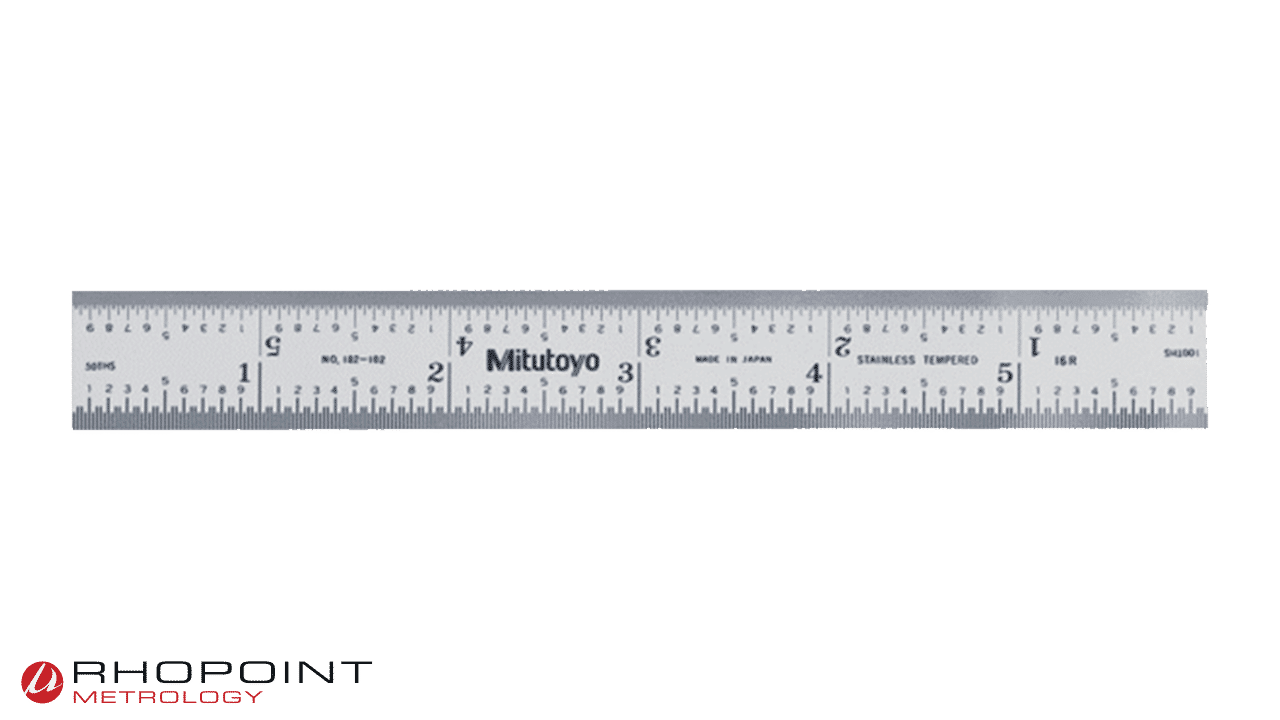

182-102	Inch	0 - 6	N/A	1/50", 1/100", 1/32", 1/64"	£15.30	Add to Basket

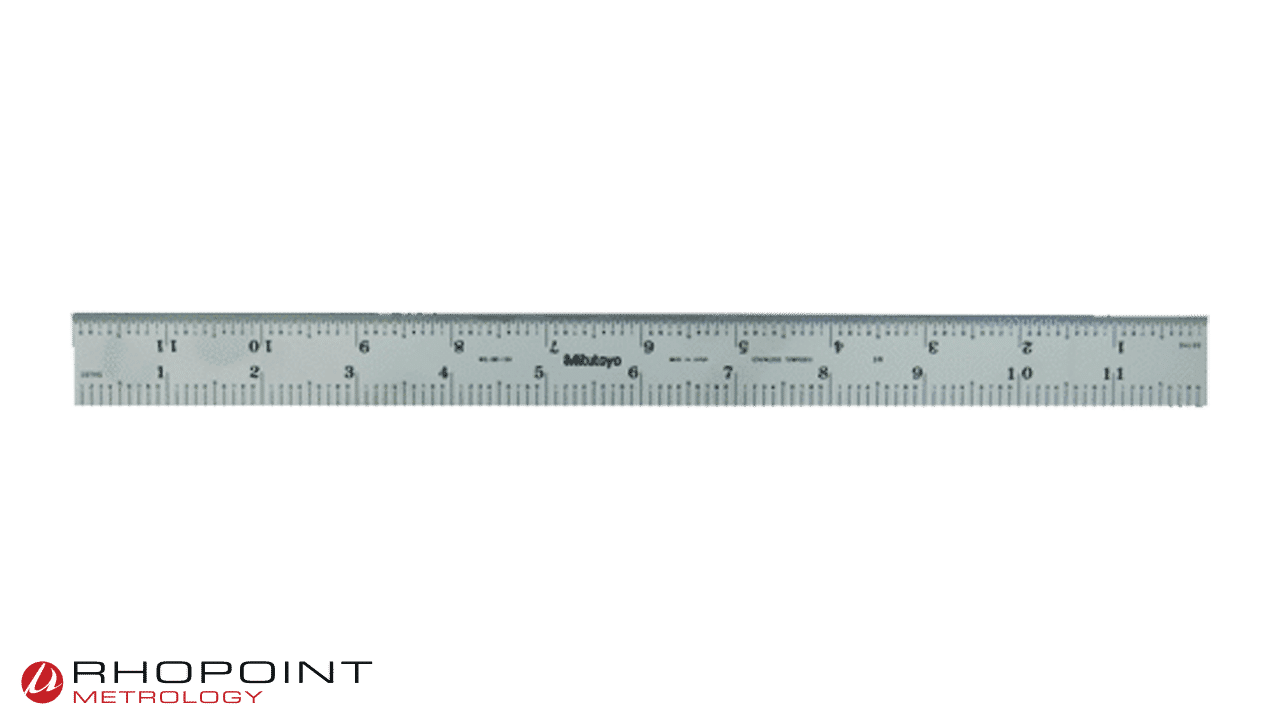

182-121	Inch	0 - 12	N/A	1/8", 1/16", 1/32", 1/64"	£17.90	Add to Basket
182-124	Inch	0 - 12	N/A	1/10", 1/50", 1/32", 1/64"	£26.10	Add to Basket
182-123	Inch	0 - 12	N/A	1/10", 1/100", 1/32", 1/64"	£26.10	Add to Basket
182-122	Inch	0 - 12	N/A	1/50", 1/100", 1/32", 1/64"	£26.10	Add to Basket
182-141	Inch	0 - 18	N/A	1/8", 1/16", 1/32", 1/64"	£44.10	Add to Basket

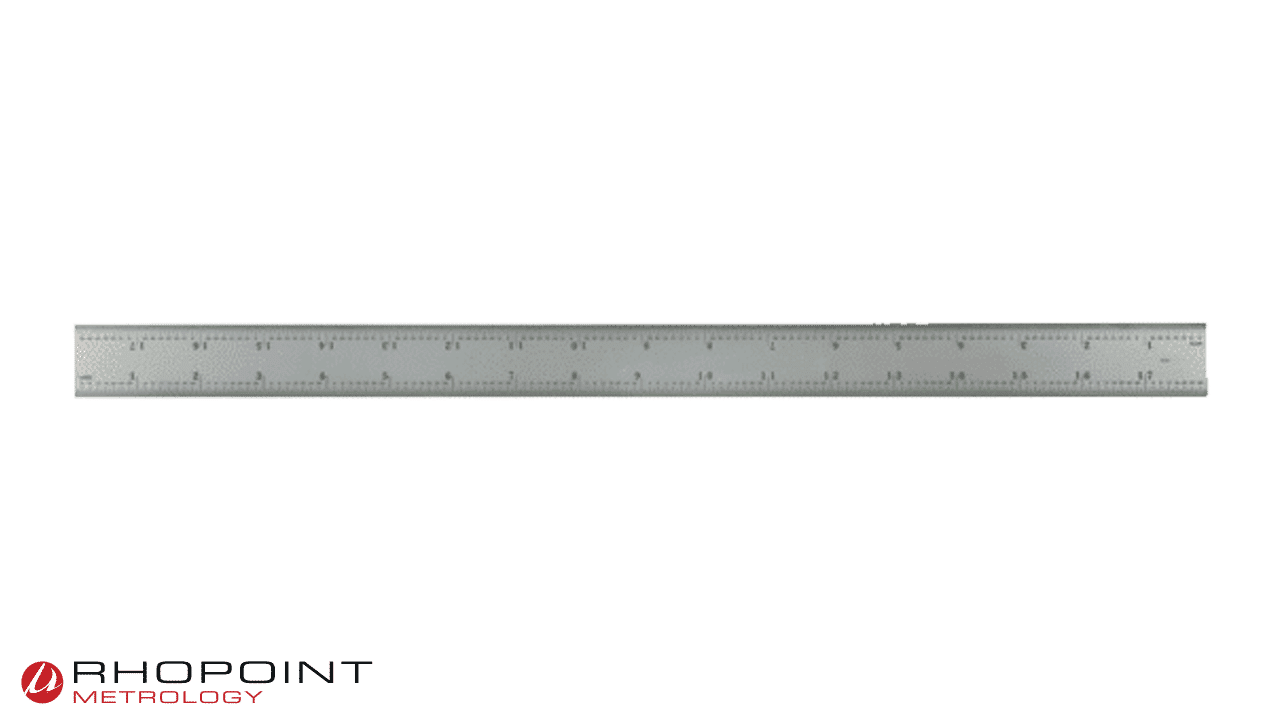

182-143	Inch	0 - 18	N/A	1/10", 1/100", 1/32", 1/64"	£56.10	Add to Basket
182-142	Inch	0 - 18	N/A	1/50", 1/100", 1/32", 1/64"	£59.90	Add to Basket

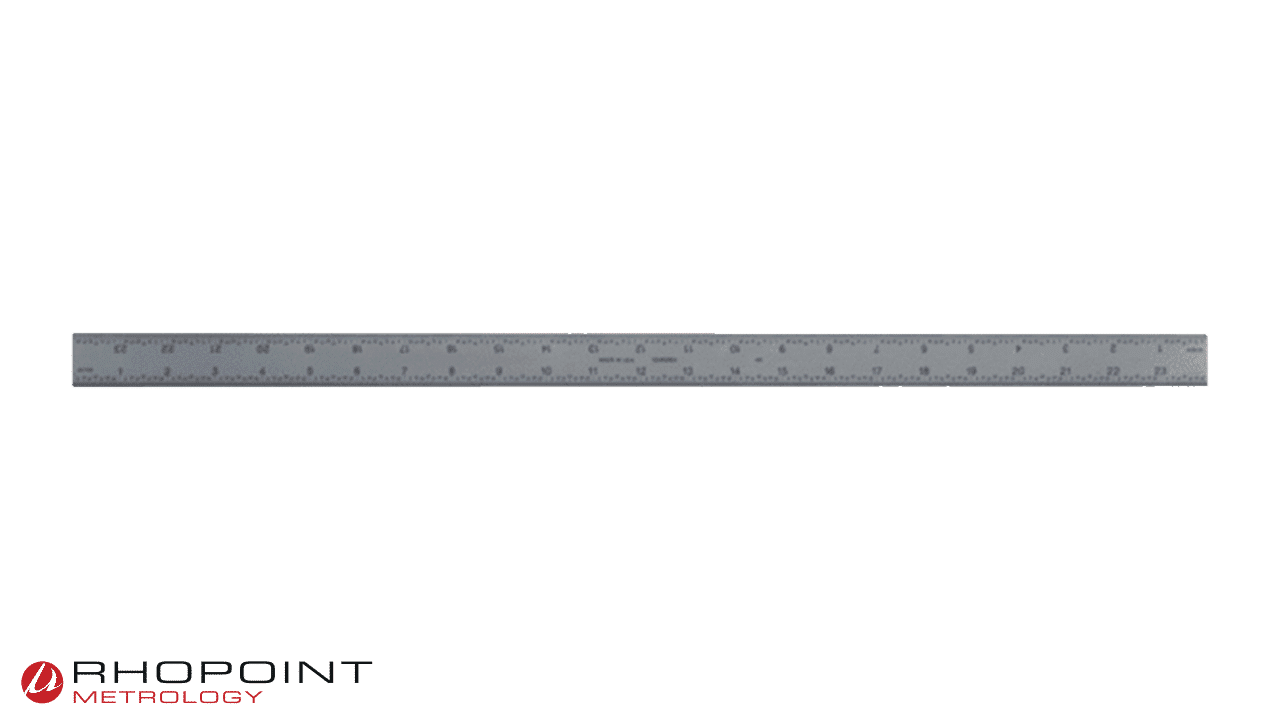

182-161	Inch	0 - 24	N/A	1/8", 1/16", 1/32", 1/64"	£62.50	Add to Basket

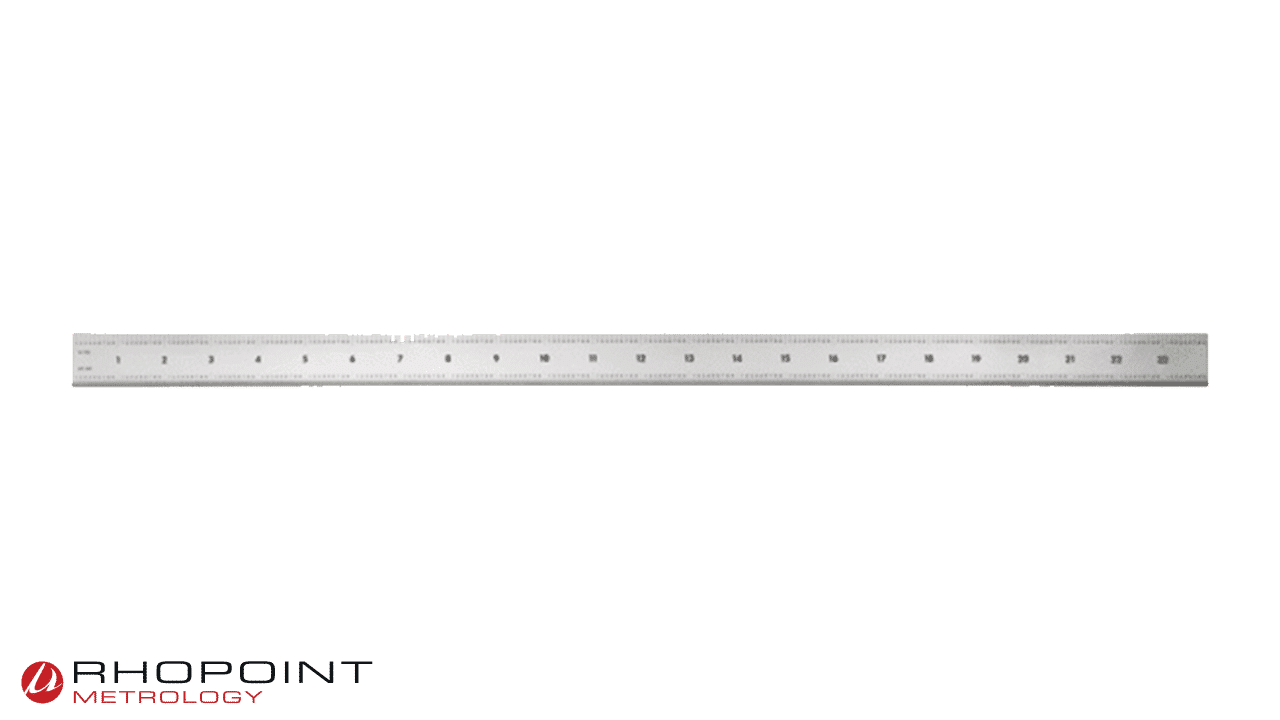

182-163	Inch	0 - 24	N/A	1/10", 1/100", 1/32", 1/64"	£62.50	Add to Basket
182-162	Inch	0 - 24	N/A	1/50", 1/100", 1/32", 1/64"	£80.60	Add to Basket
182-108	Metric/Inch	0 - 6	0 - 150	1/10", 1/50", 1 mm, 5 mm	£12.00	Add to Basket

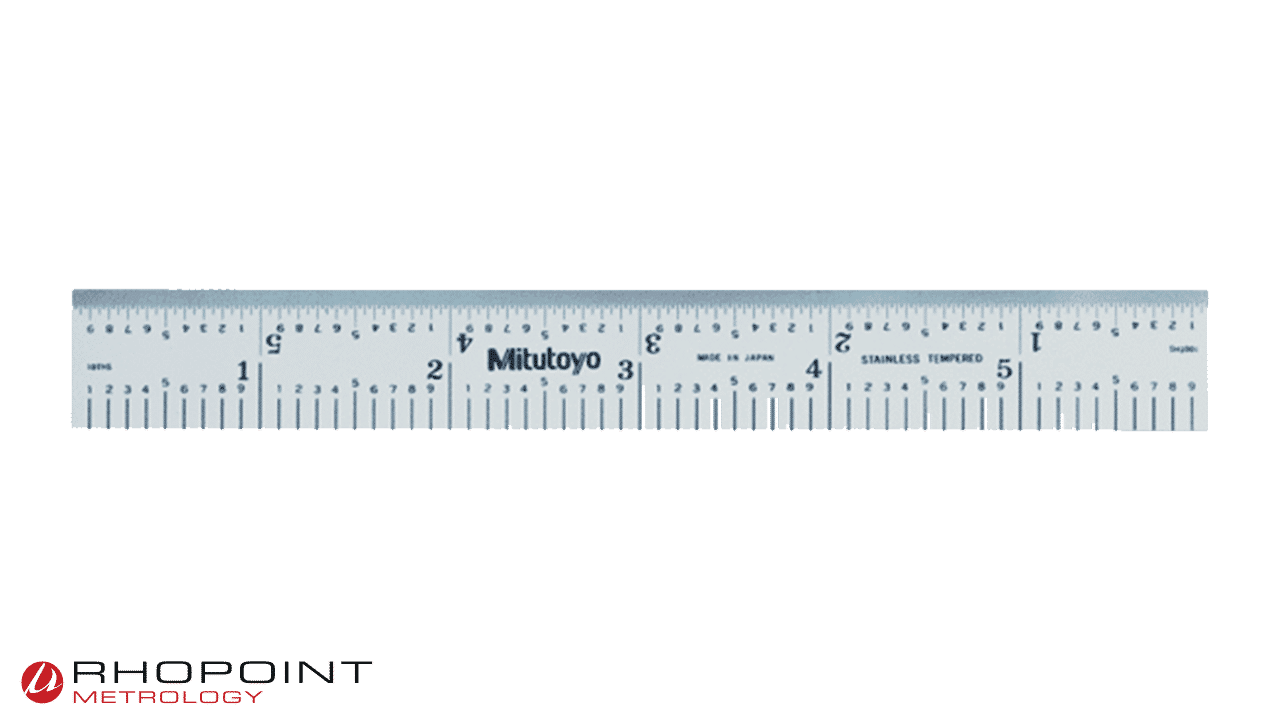

182-107	Metric/Inch	0 - 6	0 - 150	1/10", 1/100", 1 mm, 5 mm	£15.30	Add to Basket
182-105	Metric/Inch	0 - 6	0 - 150	1/32", 1/64", 1 mm, 5 mm	£12.50	Add to Basket
182-106	Metric/Inch	0 - 6	0 - 150	1/50", 1/100", 1 mm, 5 mm	£15.30	Add to Basket
182-125	Metric/Inch	0 - 12	0 - 300	1/32", 1/64", 1 mm, 5 mm	£26.10	Add to Basket

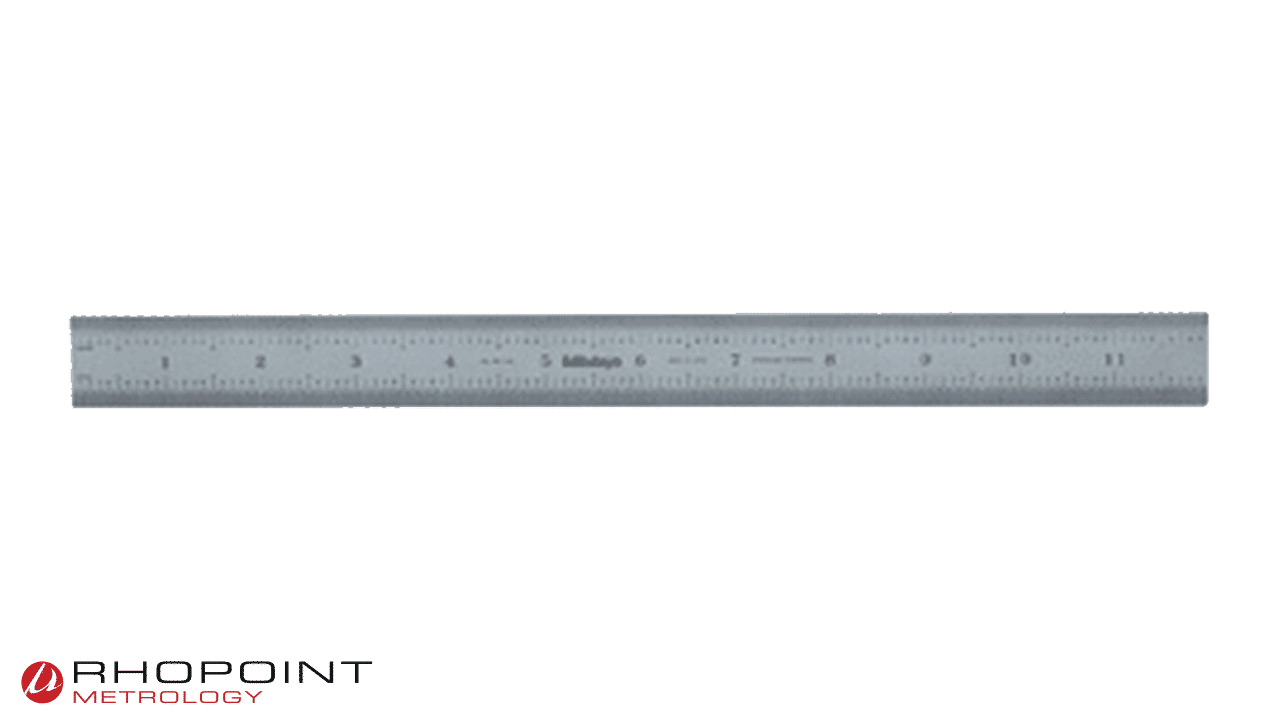

182-126	Metric/Inch	0 - 12	0 - 300	1/50", 1/100", 1 mm, 5 mm	£28.90	Add to Basket

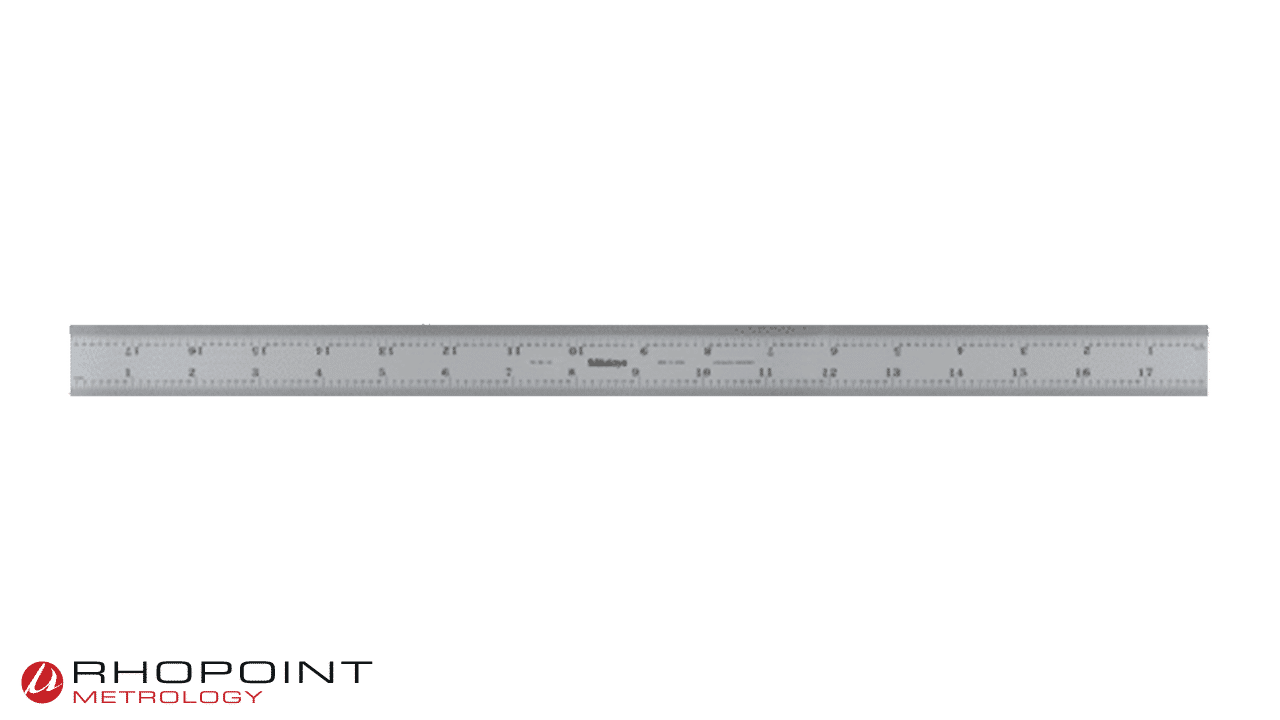

182-145	Metric/Inch	0 - 18	0 - 450	1/32", 1/64", 1 mm, 5 mm	£44.10	Add to Basket

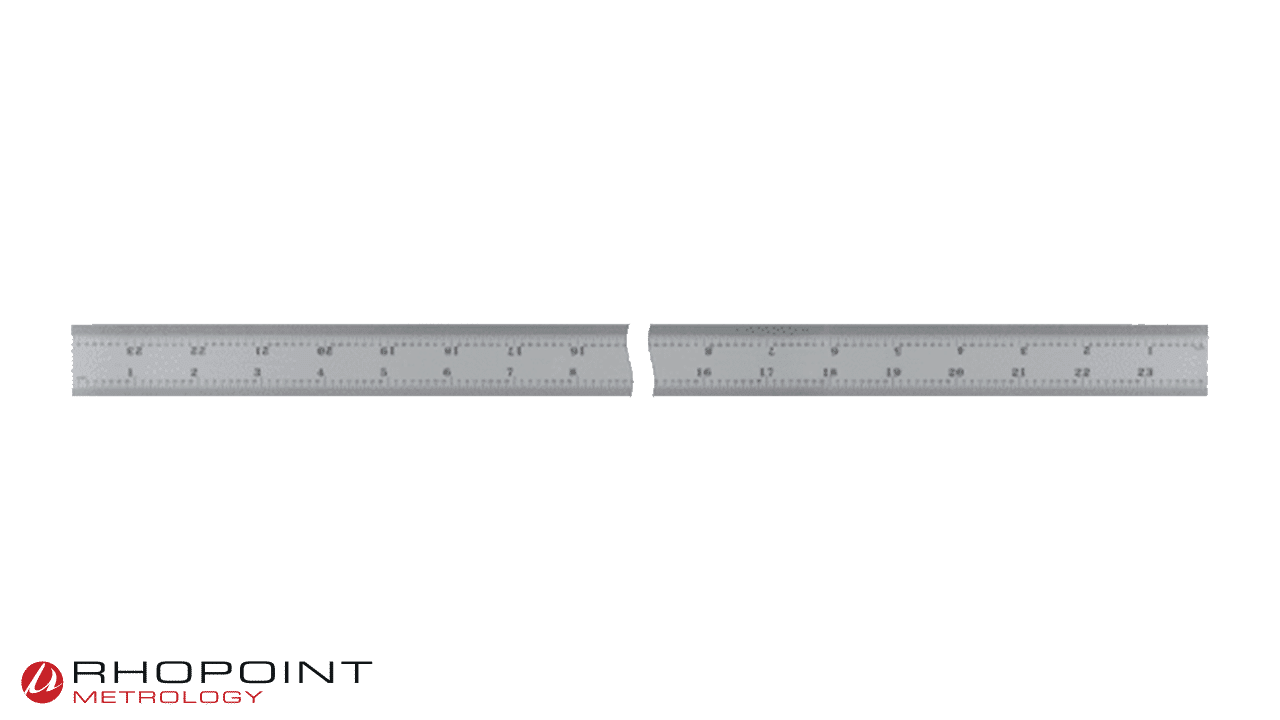

182-165	Metric/Inch	0 - 24	0 - 600	1/32", 1/64", 1 mm, 5 mm	£62.50	Add to Basket

Prices in the above table do not include calibration.

Description

These are rigid and fully-flexible rules that offer you the following benefits: They have clear graduations on satin-chrome finish. The rules are stainless tempered.

Specification

Weight	100 g
Family	Series 182
Unit	Inch, Metric, Metric/Inch
Range (inch)	0 – 6, 0 – 12, 0 – 18, 0 – 24, N/A
Range (mm)	0 – 150, 0 – 300, 0 – 450, 0 – 600, N/A
Thread Angle (Deg.)	Steel Rules
Graduation	1/10", 1/100", 1/32", 1/64", 1/10", 1/50", 1/32", 1/64", 1/50", 1/100", 1/32", 1/64", 1/8", 1/16", 1/32", 1/64", 1 mm / 0.5 mm (on both faces), 1/10", 1/100", 1 mm, 5 mm, 1/10", 1/50", 1 mm, 5 mm, 1/32", 1/64", 1 mm, 5 mm, 1/50", 1/100", 1 mm, 5 mm
Accuracy	+0.004" / -0.0035", +0.005" / -0.0035", +0.006" / -0.0035", +0.007" / -0.0035", +0.1 mm / -0.09 mm, +0.13mm / -0.09 mm, +0.15 mm / -0.09 mm, +0.18 mm / -0.09 mm
Width	0.1", 0.75", 0.813", 1", 1.18", 19 mm, 25 mm, 30 mm
Calibration Type	UKAS
