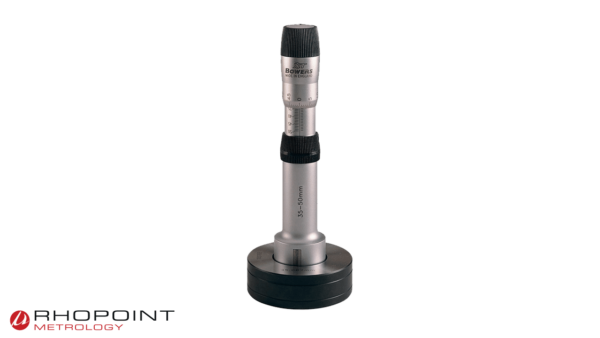

XTA Analogue Bore Gauge

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)Accuracy (mm)Depth (mm)Setting Ring (mm)Price
XTA20M20 - 250.0046620.00£309.00

Add to Basket

XTA25M25 - 350.0046635.00£444.00

Add to Basket

XTA35M35 - 500.0048035.00£453.00

Add to Basket

XTA50M50 - 650.0058065.00£538.00

Add to Basket

XTA65M65 - 800.0058065.00£538.00

Add to Basket

XTA80M80 - 1000.005100100.00£681.00

Add to Basket

XTA100M100 - 1250.006115125.00£671.50

Add to Basket

XTA125M125 - 1500.006115125.00£776.00

Add to Basket

XTA150M150 - 1750.007115175.00£998.50

Add to Basket

XTA175M175 - 2000.007118175.00£1,139.50

Add to Basket

XTA200M200 - 2250.008118225.00£1,180.50

Add to Basket

XTA225M225 - 2500.008118225.00£1,219.00

Add to Basket

XTA250M250 - 2750.009118275.00£1,329.50

Add to Basket

XTA275M275 - 3000.009118275.00£1,387.00

Add to Basket

Prices in the above table do not include calibration.

Description

  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm-6mm and above 12.5mm (0.500″)
  • Extensions available above 6mm for deep hole measurement
  • Ratchet stop to ensure consistent measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings
  • UKAS certificate supplied as standard with all XT mechanical gauges
  • Serial number on all gauges
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification.

Bowers has launched the new XTA Micro to cover the measuring range 2-20mm. The XTA Micro incorporates a more compact mechanical controller and Vernier scale for improved resolution.
